Coil resistance |
2Ω |
|
Coil resistance error |
2Ω±0.2Ω |
|
Valve port diameter |
4 ±0.05mm |
|
Rated pressure |
≤0.30MPa |
|
Impact frequency Max |
≤100Hz |
|
Service life |
≥5 Million times |
|
Material Science for spool |
DT8E |
|
Closing time |
2.1ms |
|
Minimum opening time |
3.6ms |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
More details by vedio

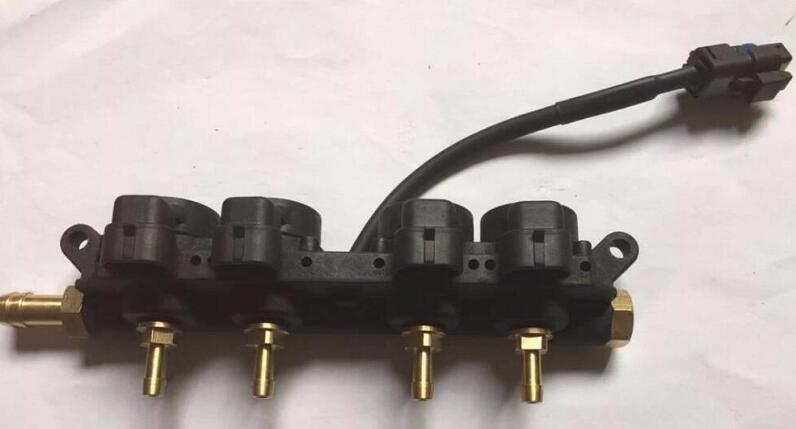

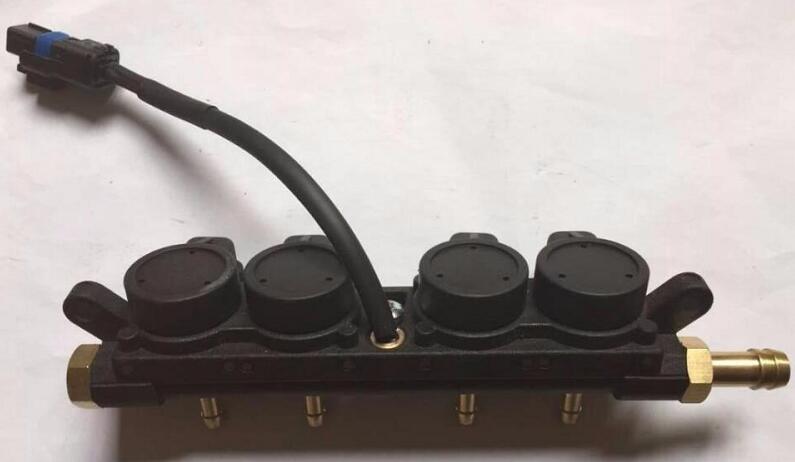

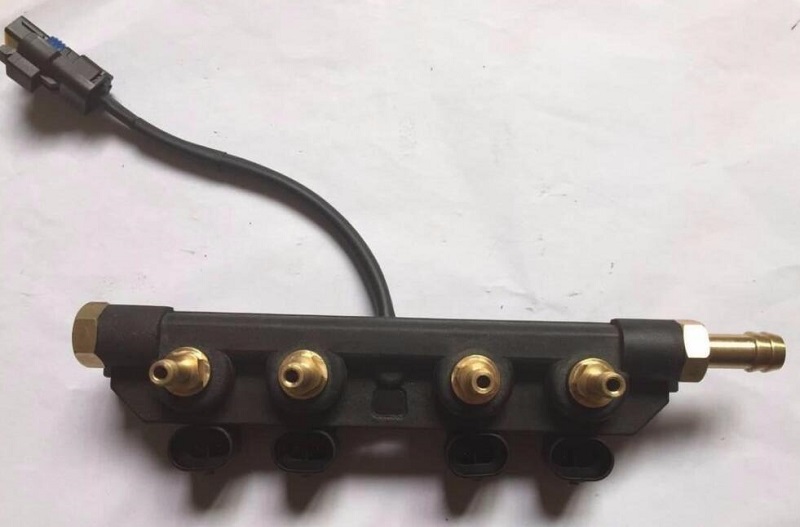

The injector is an electro-mechanical component used for dosing the correct Gas quantity required in various work conditions by the engines that use alternative fuels: LPG and CNG.
Electro-injector to be fit after the pressure reducer and before the engine intake manifolds.
The injector measures the ideal quantity of gas to be injected in the intake manifolds.
When the coils are stimulated, the core slides open and the gas flows through a calibrated nozzle. The core movement and the opening time together with the nozzle diameter are the main elements that influence the engine carburetion.
|
Voltage |
DC 12V |
|
Voltage range |
DC 10V-DC 16V |
|
Temperature range |
-40℃-105℃ |
|
Coil resistance |
2Ω |
|
Coil resistance error |
2Ω±0.2Ω |
|
Valve port diameter |
4 ±0.05mm |
|
Rated pressure |
≤0.30MPa |
|
Impact frequency Max |
≤100Hz |
|
Service life |
≥5 Million times |
|
Material Science for spool |
DT8E |
|
Closing time |
2.1ms |
|
Minimum opening time |
3.6ms |
|
Outlet nozzle diameter range |
¢1.8mm |
|
Applicable medium |
CNG |
|
Net weight |
685g |
|
Size |
21*6.5*4.5cm |
